V46 TOP CASE – LED KIT (CG)

C$ 193.70

Brand: AdMore Lighting

Product Code: LEDV46-T-TS (CG)

Availability: In Stock

(9 customer reviews)
The "Bike Year" field can't be empty
The "Bike Make" field can't be empty
The "Bike Model" field can't be empty
V46 TOP CASE – LED KIT (CG)
C$ 193.70

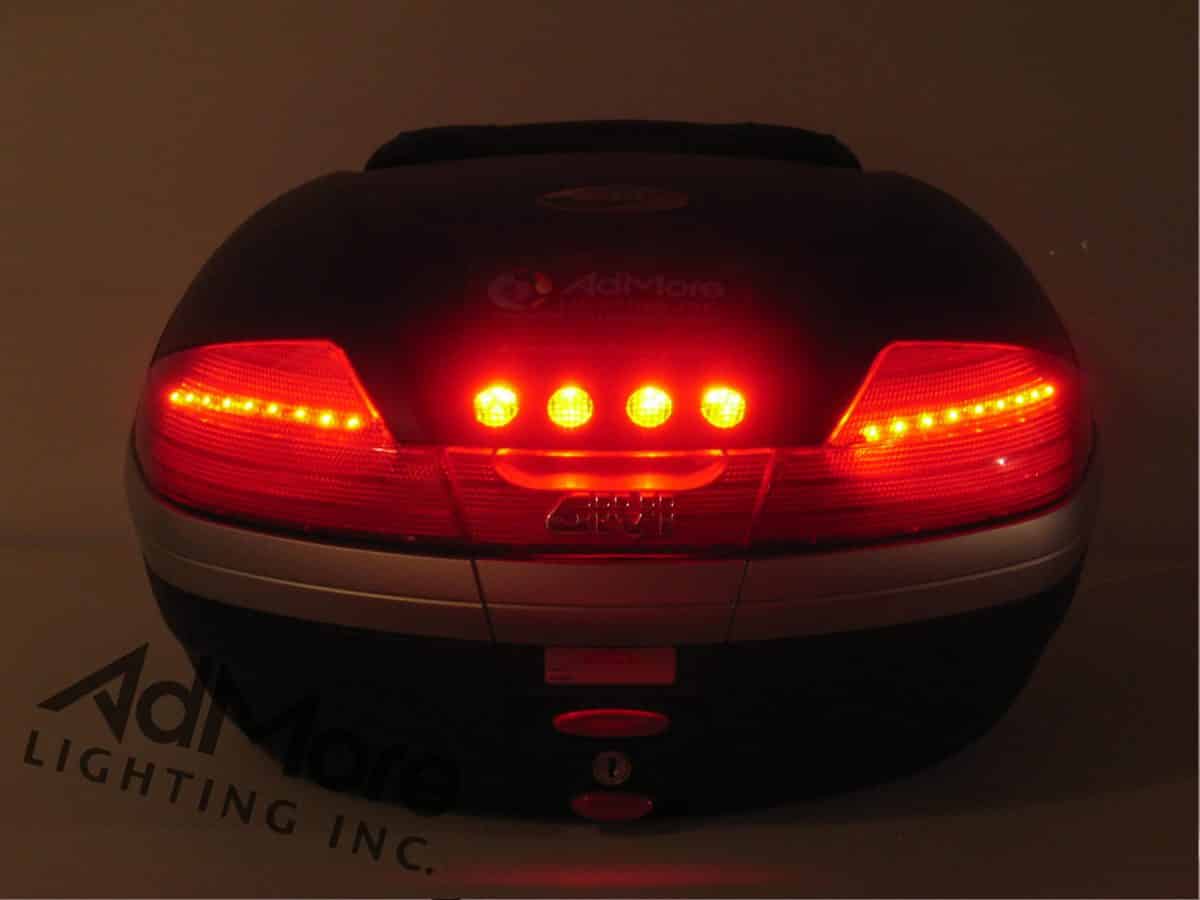

The AdMore Light Kit for the V46 top case. Enhance your visibility! Make sure that you’re seen with this light kit installed in your V46 top case! The AdMore LEDV46-T-TS Light Kit significantly increases your visibility on the road by providing brake light, tail light and amber turn signal functionality to your GIVI V46 top case. The LED arrays that come with this kit have been custom designed to fit perfectly in this case. Using high-intensity, high-efficiency LEDs, our brake light kit draws less than 300Ma with the brakes applied (as compared with nearly 700Ma using conventional incandescent bulbs).

Features

  • High-powered red/amber LED arrays fit perfectly in the stock GIVI light cut-outs (no modifications required)
  • New power harness design allows you to customize specific functions: 1. Brake Light Modulation (Default=”On”), 2. Brightness (Default=”High”), 3. Tail light (Default=”On”).
  • Power Harness mates to case using weatherproof, micro connectors to allow for easy and quick removal of your topcase from your bike
  • Brake light with modulation (optional) provides an excellent safety feature by quickly flashing the light kit brake lights 3 times before going solid at high intensity (similar functionality to many emergency vehicles on the road)
  • Case lights remain on while riding (tail light mode: on or off)
  • Amber turn signal functionality
  • Easy installation – only basic tools required
  • CANbus compatible

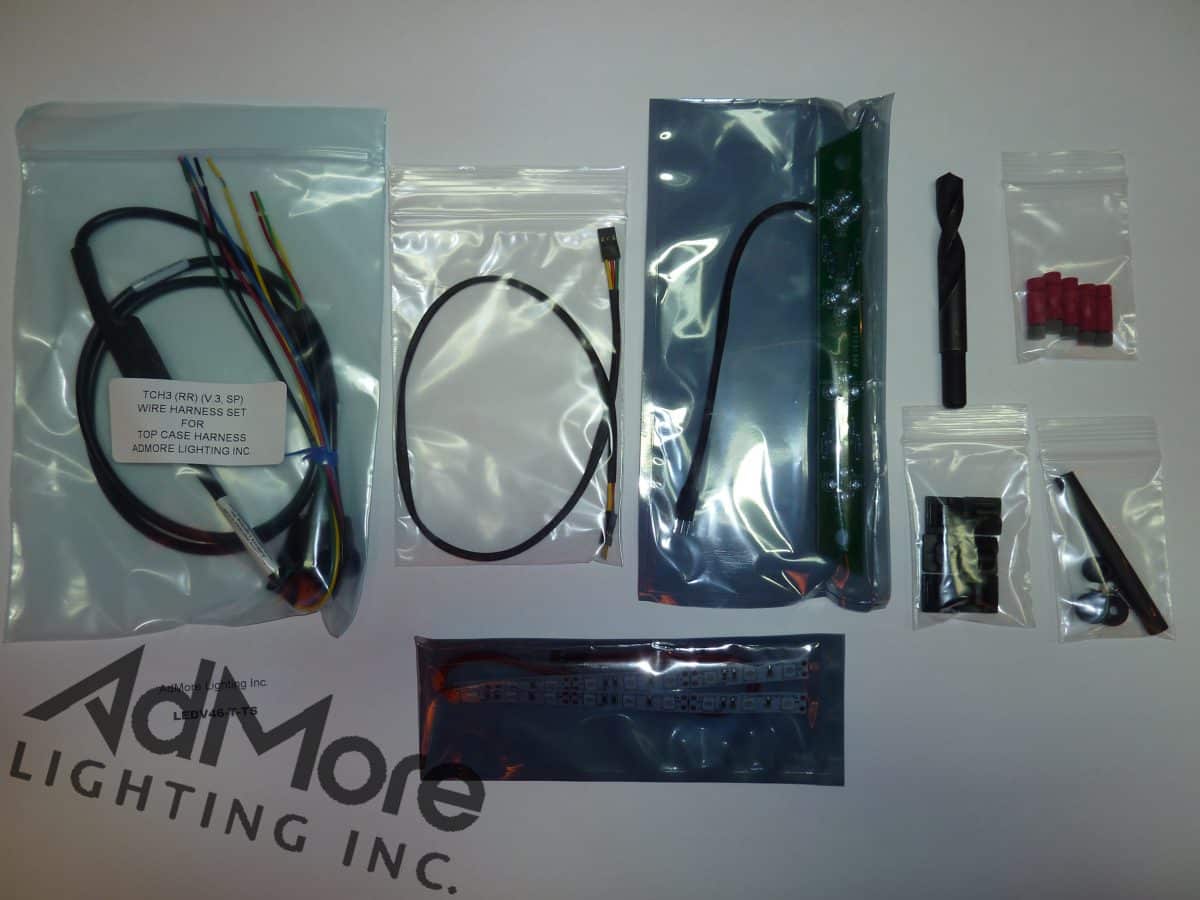

What’s Included

  • New Power Harness with configuration options
  • Mating Case Harness
  • One (1) center array and two (2) side high intensity bi-color (red/amber) LED arrays
  • Premium wire tap connectors
  • Detailed instructions
  • One (1) year limited warranty

Compatibility

  • GIVI V46 topcase
  • Red, clear/smoked case lenses

Documentation

Instructions for LEDV46-T-TS (CG) Light Kit

9 reviews for V46 TOP CASE – LED KIT (CG)

Powered byCusRev
4.8
Based on 9 reviews
5 star
88
88%
4 star
0%
3 star
11
11%
2 star
0%
1 star
0%
  1. Timothy F. (verified owner)

    Works just as described. I will say that you should definitely read the installation instructions to ensure you get the wiring correct as there is one connection that is slightly different than all the others. I’m very happy with the appearance and overall functionality of the kit. Definitely enhances the visibility to other drivers behind me.

    • AdMore Lighting (store manager)

      Glad to hear that you are happy with your AdMore Light Kit. Enjoy!

  2. Chris W. (verified owner)

    This is a great enhancement to make your ride more visible. I put this on my wife’s bike which had nearly invisible turn signals and it is a huge improvement. I’m also very happy with the flashing brake light mounted high up and more visible than the existing light. The product is well made and came with everything needed for a nice clean install.

  3. Shawn Vadnais (verified owner)

    The kit worked great, installation instructions took a bit to figure out, and getting them lined up to be level and in the right position took some trial and error. A template would have helped.

    The connections to the left and right LED board don’t hold very well so had to solder mine to ensure they didn’t fall out.

    I already has the wiring kit for my bike so just added the top case light to that kit.

    Overall very happy with the additional visibility.

    Video #1 from Shawn Vadnais
  4. David Clark (verified owner)

    I like the way these lights add more to my bike. And easy to set up.

  5. Robert Collings (verified owner)

    ..and great customer service from Dave!

  6. COLLIN (verified owner)

    Although documentation (install details) were a little weak for someone who has not previously installed lights, it is fairly intuitive. Great product!

  7. Shawn D. (verified owner)

    The ease of ordering and ultimately arrival of the light kit is why I keep coming back.

  8. Daniel Phillips (verified owner)

    Instructions need to be improved, pictures were labeled Fig 1, Fig 2, etc. but in the instruction text it never referred to them (except fig 6). Some pictures were hard to identify which part of the top case, the lid or the base, was being shown.

    I liked that there is a selector switch to turn on or off the fast blink when first applying brake although the description of which switch does that was not clear. Instruction for Switch 2 & 3 (or was it switch 3&4) seemed to say the same thing

  9. Dany Langlois (verified owner)

    Super fast shipping and 1st class customer service! Thank you!
