UNIVERSAL TOP CASE LIGHT KIT, BI-COLOR

C$ 180.70C$ 193.70

Brand: AdMore Lighting

Availability: In Stock

(5 customer reviews)
The "Bike Year" field can't be empty
The "Bike Make" field can't be empty
The "Bike Model" field can't be empty
universal top case light kit
UNIVERSAL TOP CASE LIGHT KIT, BI-COLOR
C$ 180.70C$ 193.70

The AdMore Universal Top Case Light Kit. Jesse? Pelican? TRAX? Trekker? Regardless of your case, chances are our new high-powered light kit will fit your case and will look great!

Enhance your visibility! Make sure that you’re seen with this light kit installed in your top case!

The AdMore top case light kit significantly increases your visibility on the road by providing brake light, tail light and amber turn signal functionality to your top case.  The new power harness that comes with this light kit even allows you to customize specific functionality.

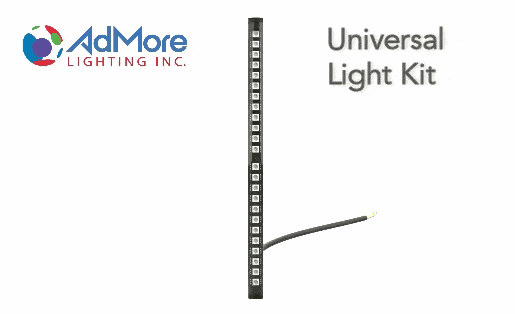

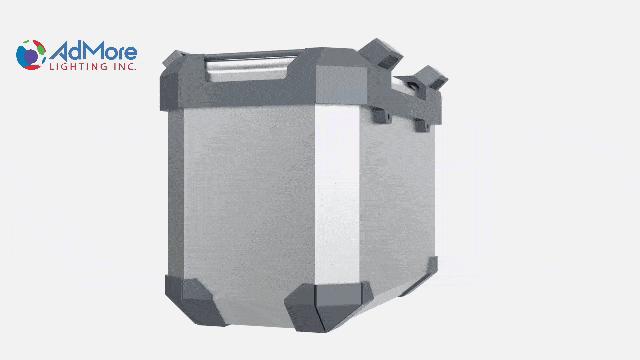

Our low-profile, universal bi-color (Red/Amber) light arrays can be mounted on just about any top case with a relatively flat surface. Each LED light array comes with high strength 3M tape for a quick and permanent installation. Our LED arrays come with the wires exiting out the back of the array so that you can flush mount the array on just about any surface and the wires are 100% hidden from view. A professional installation that you can do yourself with a clean, wire-free result!

Features

  • High-powered red/amber LED arrays look beautiful on aluminum and poly-carbonate top cases.
  • New power harness design allows you to customize specific functions: 1. Brake Light Modulation (Default=”On”), 2. Brightness (Default=”High”), 3. Tail light (Default=”On”).
  • Power Harness mates to case using weatherproof, micro connectors to allow for easy and quick removal of your case from your bike
  • Brake light with modulation (can be turned off) provides an excellent safety feature by quickly flashing the light kit brake lights 3 times before going solid at high intensity (similar functionality to many emergency vehicles on the road)
  • Case lights remain on while riding (tail light mode optional)
  • Amber turn signal functionality
  • Easy installation – only basic tools required
  • CANbus/HexEZCan compatible

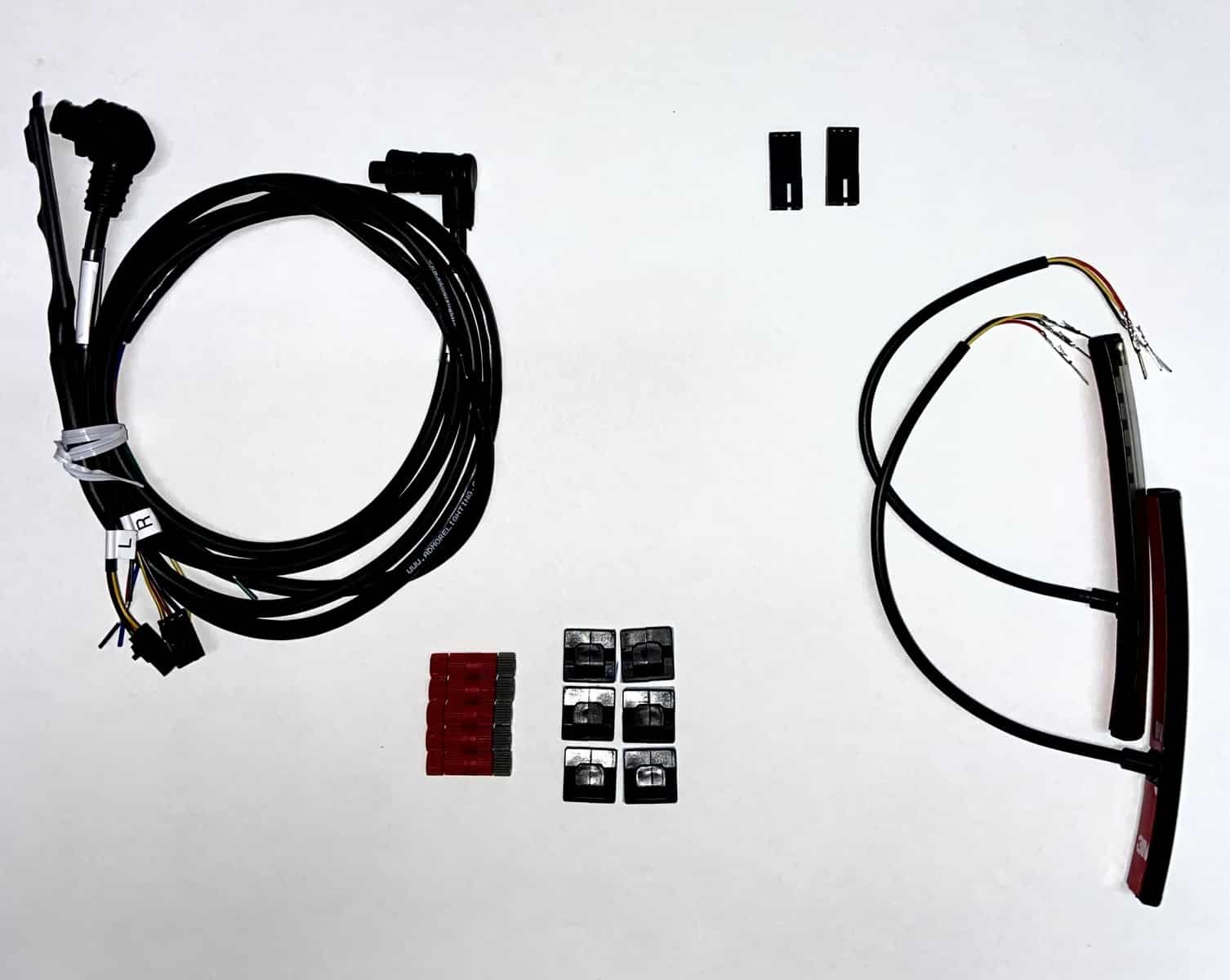

What’s Included

  • Power Harness
  • Mating Case Harness (1)
  • Two (2) high-intensity bi-color (red / amber) LED arrays
  • Premium wire tap connectors
  • Detailed instructions
  • One (1) year limited warranty

Installation is easy and can be done in an hour or two using basic tools!

You will not ride unnoticed with this light kit installed in your top case! This light kit is an important safety addition to your bike as it sits up higher than your stock tail light!

Compatibility

  • No compatibility issues that we are aware of

Available Options

  • This kit is available with arrays in two sizes:
    • Small: 5″ x 1/2″ x 1/4″ (130mm x 13mm x 6mm)
    • Large: 83/4″ x 1/2″ x 1/4″ (220mm x 13mm x 6mm)

Check out this install on a 2019 BMW R1200GSA:

Small: LED1213H-T-TS
Large: LED2422H-T-TS

Documentation

Instructions for Universal (CG) Topcase Kit



Instructions for Universal (CG) Topcase Kit (under lens fitment)

5 reviews for UNIVERSAL TOP CASE LIGHT KIT, BI-COLOR

Powered byCusRev
4.8
Based on 5 reviews
5 star
80
80%
4 star
20
20%
3 star
0%
2 star
0%
1 star
0%
  1. Tim K. (verified owner)

    Was excited to find this is produced in my home town! Great light kit. Perfect add to the top box on my HD Pan America. Install took a while, only because you have to take so much of the Pan America apart to get to the connections under the seat and paneer frames. Controller is mounted in watertight box under the passenger seat. May add strips to the side cases at some point in the future.

    Image #1 from Tim K.
    Image #2 from Tim K.
    Image #3 from Tim K.
    Image #4 from Tim K.
    Image #5 from Tim K.
    • AdMore Lighting (store manager)

      Thanks for the review, Tim, and for including pictures of your bike and the AdMore Light Kit installed! Looks awesome!!

  2. Jon Theurich (verified owner)

  3. Jacobo Rodriguez (verified owner)

  4. HAROLD (verified owner)

    Unit preforms as expected. Easy to follow instructions. Video links are also helpful. Supplied drill bit is a great addition. Wires are a good length which makes routing options easier. Wish the box connector would be made with a lower profile.

    Image #1 from HAROLD
    Image #2 from HAROLD
    Image #3 from HAROLD
    Image #4 from HAROLD
    Image #5 from HAROLD
  5. GEORGE S. (verified owner)

    GREAT KIT LOOKS FANTASTIC
